4.2.9 Barcode


If you need to use a barcode scanner to scan barcodes for in and out of the warehouse, follow the steps below to set it up.

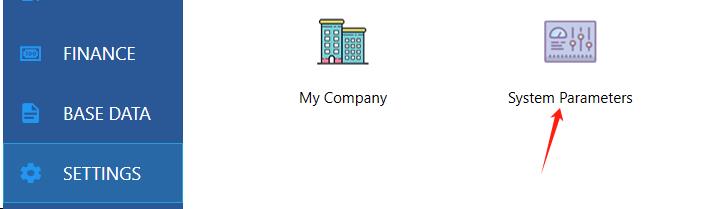

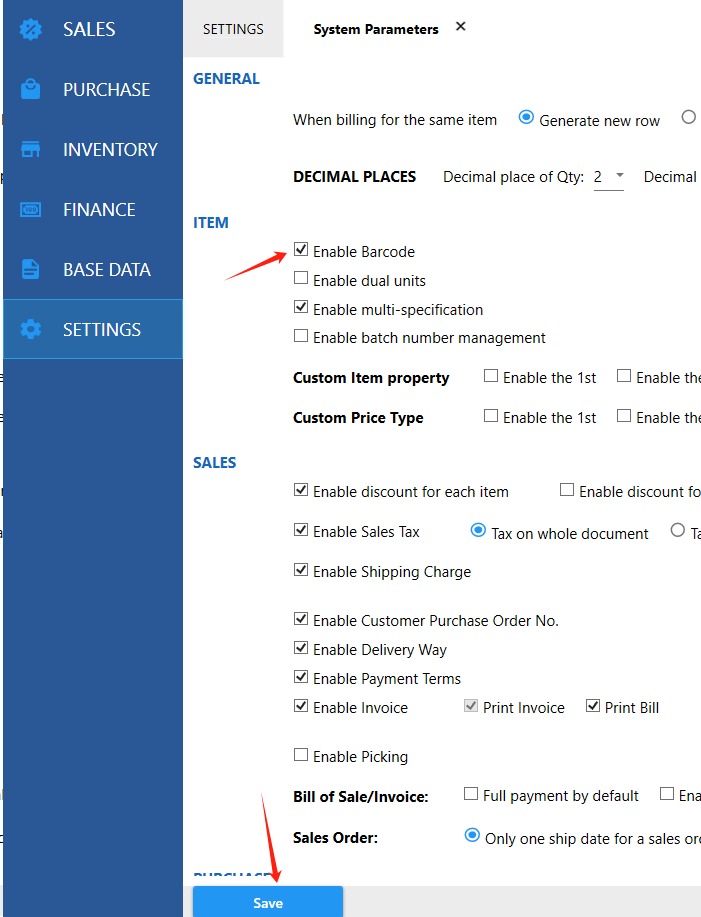

Step 1: Enable Barcode














Step 2: Enter barcodes into the system

There are 3 methods to enter barcodes into the system.

Method 1： Enter barcode one by one

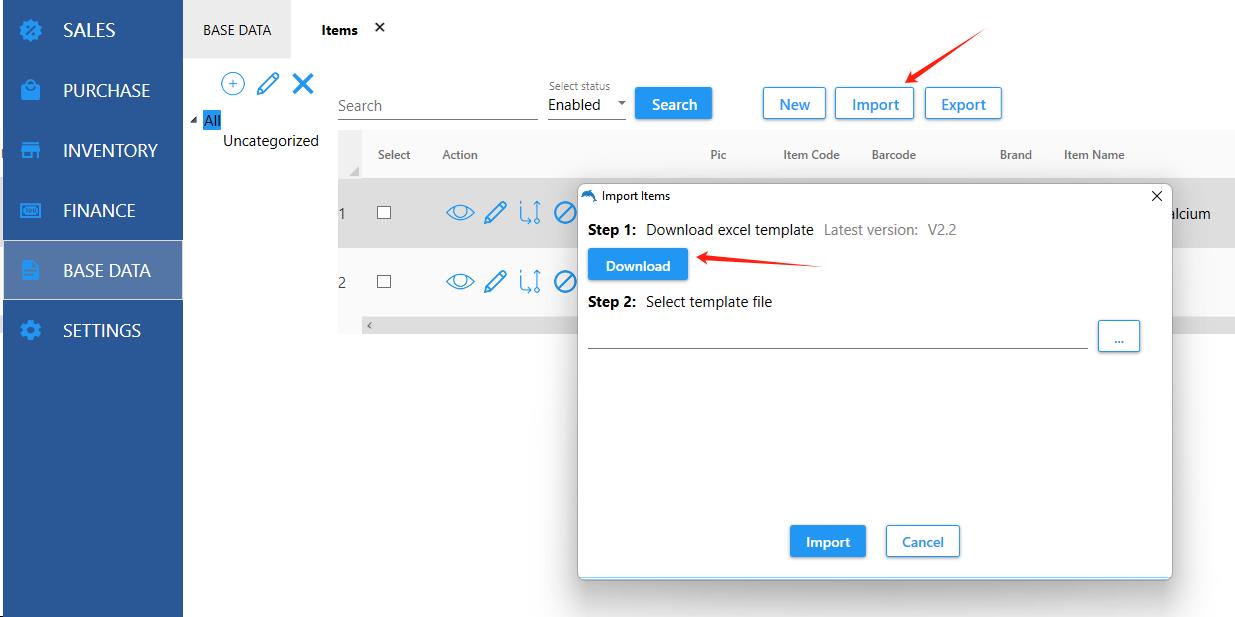

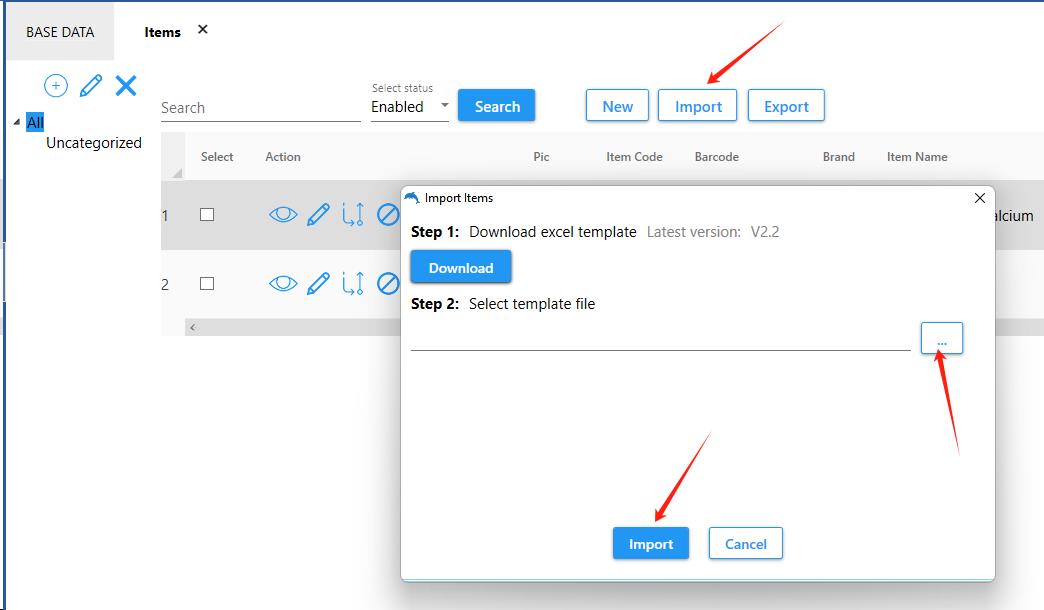

Method 2：Import
When importing items, enter the barcodes of the item and import them into the system together.




Enter all the items information and then import them into the system.

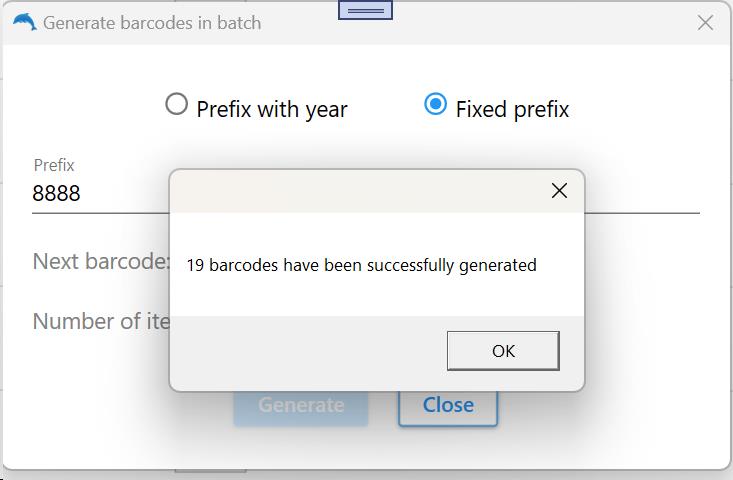

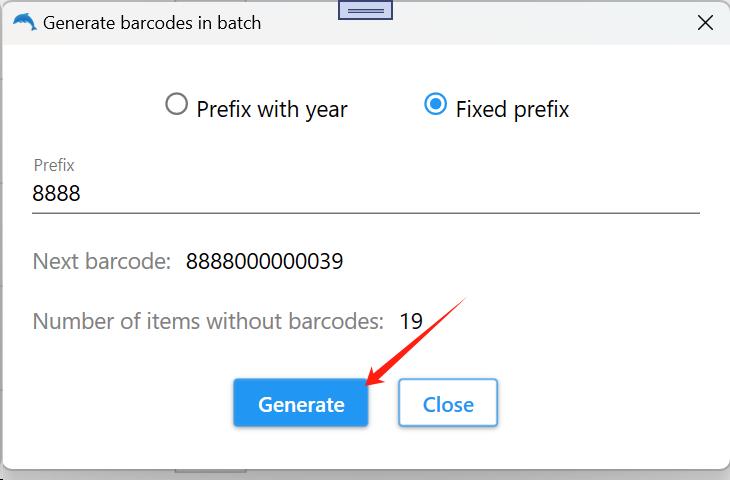

Method 3: Generate barcodes in batch

(Only supported by the International Ultimate Edition, other versions do not support it. Other editions can upgrade the function by paying the price difference)

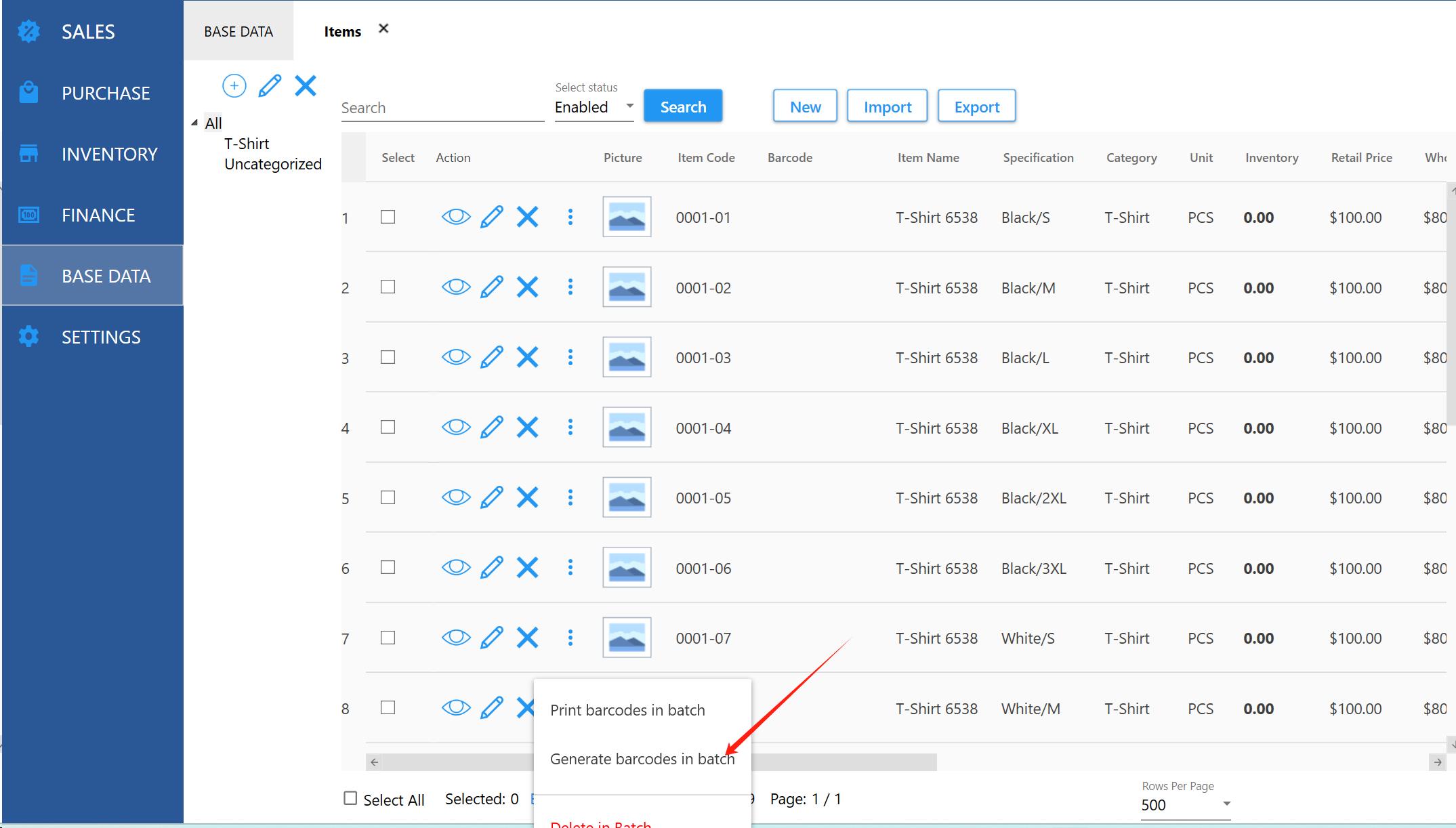

Base Data- Items - Batch Actions - Generate barcodes in batch

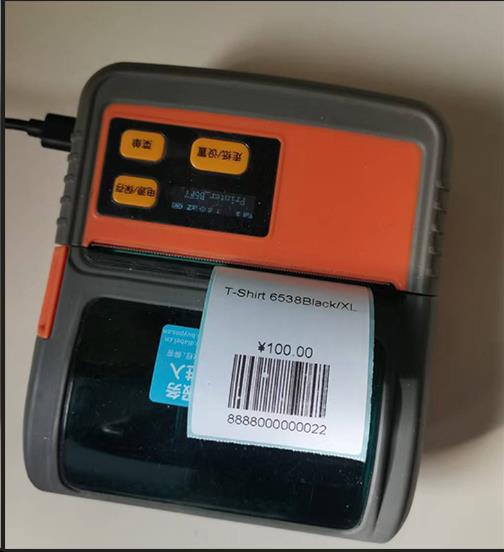

Step 3: Print barcodes

(Only supported by the International Ultimate Edition）


Before printing a barcode, you need to set the paper size.  Refer to 9.3.2 Customizing the printer paper size
Modify the barcode printing template, Settings - Print Template - Barcode,Refer to 9.3.3 Modify the Print Template and Barcode Print Template Supported Codes

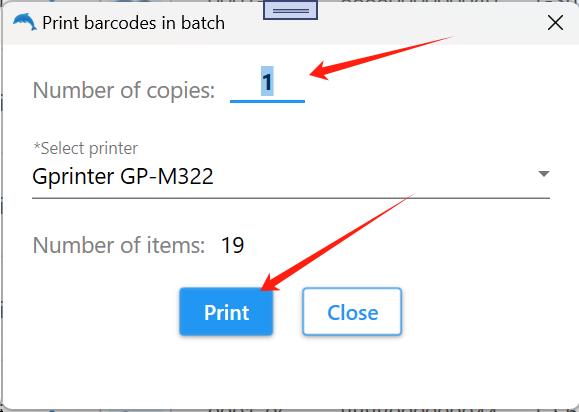

Print barcodes in batch

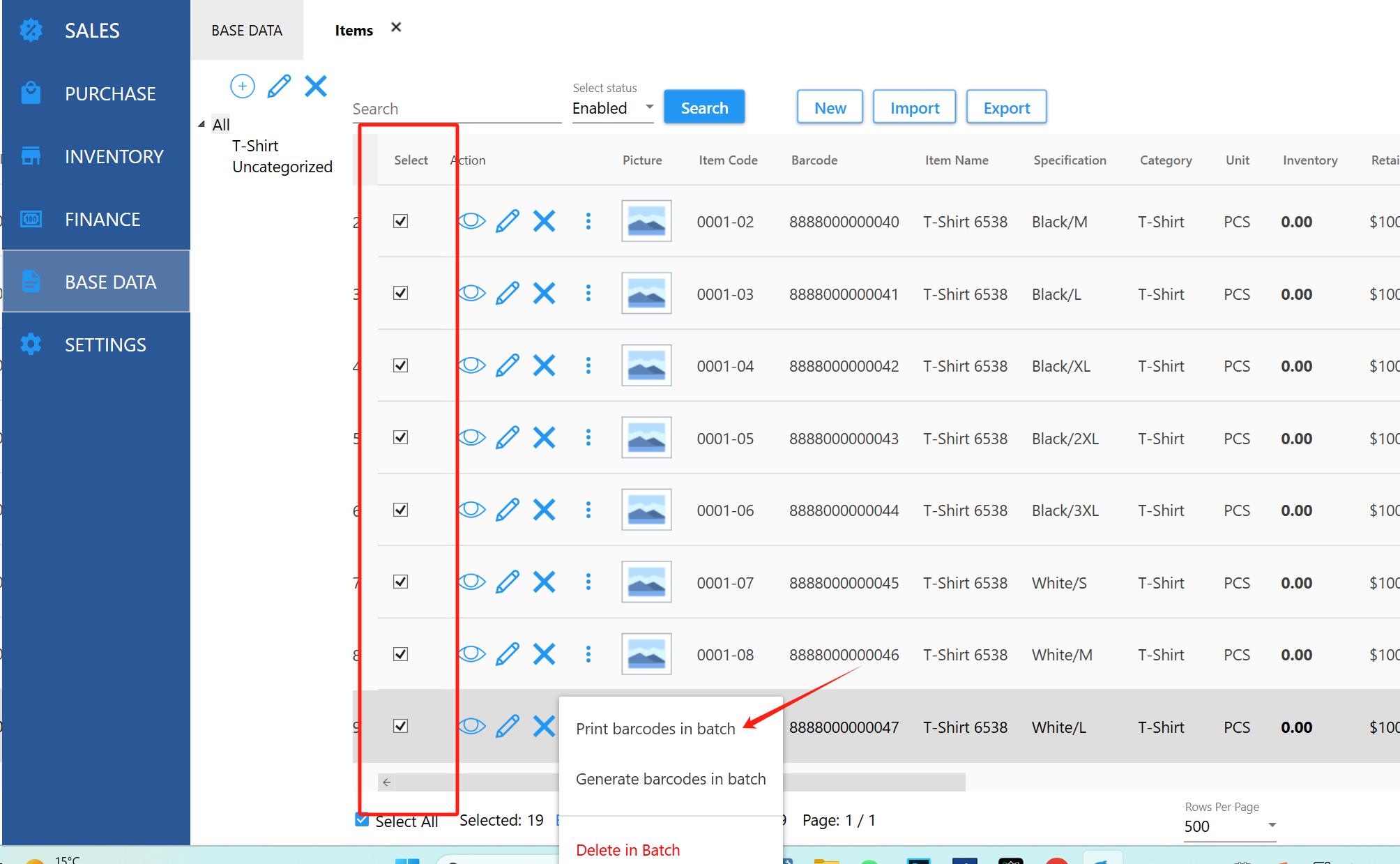

Base Data - Items, first select the items that needs to print barcodes, Batch Actions - Print barcodes in batch



Step 4: Scanning the barcode

Connect the barcode scanner to the USB interface on the computer, and you can scan the barcode。

First select the customer, then put the mouse cursor into the Scan barcode  text box, you can scan the barcode.

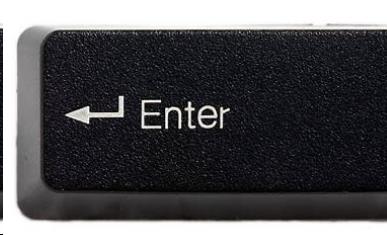

If you don't have a barcode scanner, you can also manually enter the barcode and press ENTER, which is the same.
